1 Mil Blue Polyester Discs

Sku:BPD
Starting at: $14.0065
Starting at: $14.0065
Rolls

Need Help Finding the Right Part?

Masking Product Finder - Use our tool to find the right size.

Cross Reference Tool - Find equivalent CFS products.

Product Details
chevron-up

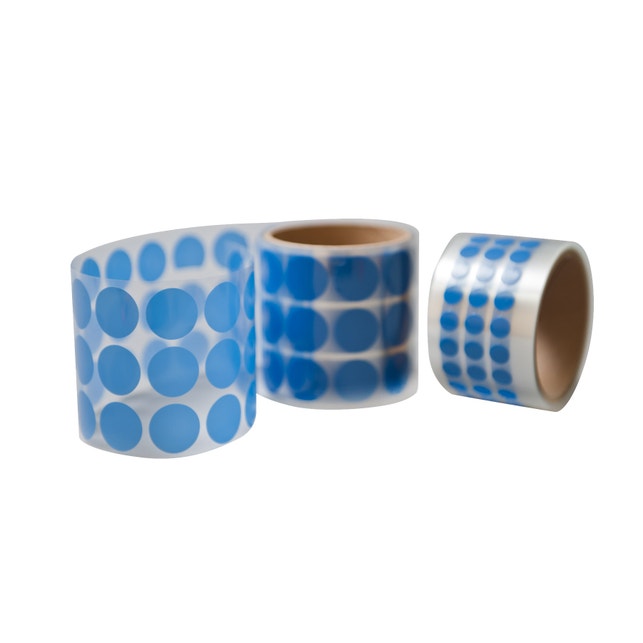

These die cuts are manufactured from a thin, commercial grade polyester film with a pressure sensitive silicone adhesive. With a carrier of 1 Mil, this product is extremely conformable and has very sharp line definition.

Product Features

  • Temperature Rating: 400° F / 204° C
  • Die cuts 0.250" or larger have a split-back liner for ease of use - split liner for smaller dimensions upon request
  • Removes cleanly even after long bake cycles with no residue
  • Used in Powder Coating, E-Coating, Anodizing and Plating
  • Standard die cut sizes in stock or can be made to your specifications

Construction

  • 1 Mil Polyester Carrier
  • 2.0 Mil Silicone Adhesive
  • 3.0 Mil Total Thickness
  • Roll Length - 72 yards

Specifications

  • Tensile Strength (lb/in) - 50
  • Elongation (%) - 100
  • Steel Adhesion (oz/in) - 35
Material Specifications
chevron-up
Related Products
chevron-up
Available Dimensions chevron-up
Convert Units:





















Need a Custom Size?

If you don’t see the dimension you need, let us know. We can create a custom part for you.

Request a Quote
