3M 425 Aluminum Foil Discs
Need Help Finding the Right Part?
Masking Product Finder - Get the right size!
Cross Reference Tool - Find equivalent CFS parts!

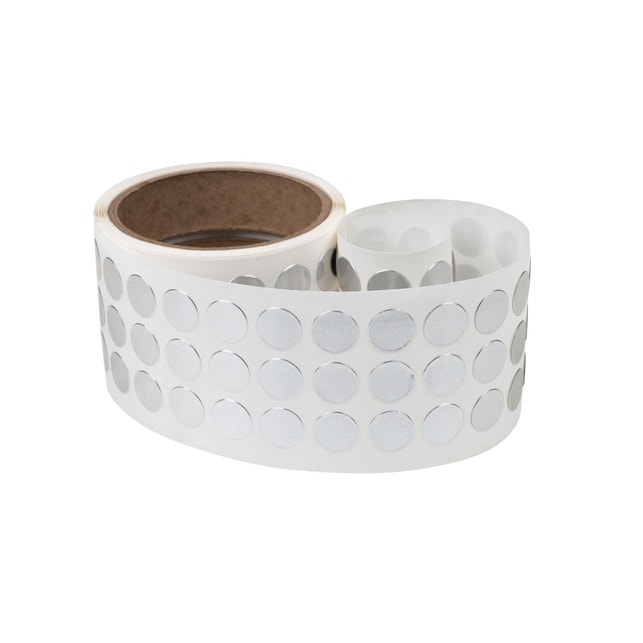

The 3M 425 die cut discs are manufactured from a tape that combines a 3 Mil nominal dead soft aluminum foil backing with a transparent arcylic adhesive. A good choice for masking in aluminum electroplating as it won't contaminate the bath. The aluminum backing provides excellent reflection of both heat and light.
Product Features
- Flame resistant
- Shiny silver color
- Low moisture vapor transmission
- Acrylic adhesive is long-lasting
- Reflects both heat and light
- Should be applied to a clean, dry surface above 32° F (0° C)
- All die cuts 3/8" or larger come standard with a split-back liner; Split liner for smaller dimensions upon request
- Used for a variety of applications (see spec sheet)
- Standard and custom die cut sizes available
Construction
- 2.8 Mil Aluminum Foil Backing
- 4.6 Mil Total Thickness
- Roll Length - 60 yards
Specifications
- Tensile Strength (lb/in) - 28
- Elongation (%) - 6
- Steel Adhesion (oz/in) - 42
CFS services many different non-masking customers and industries. From custom die cut thermal pads for LED lighting manufacturers to FDA grade silicone molded parts for medical OEMs - what we can produce from flexible materials is limited only by your imagination.
