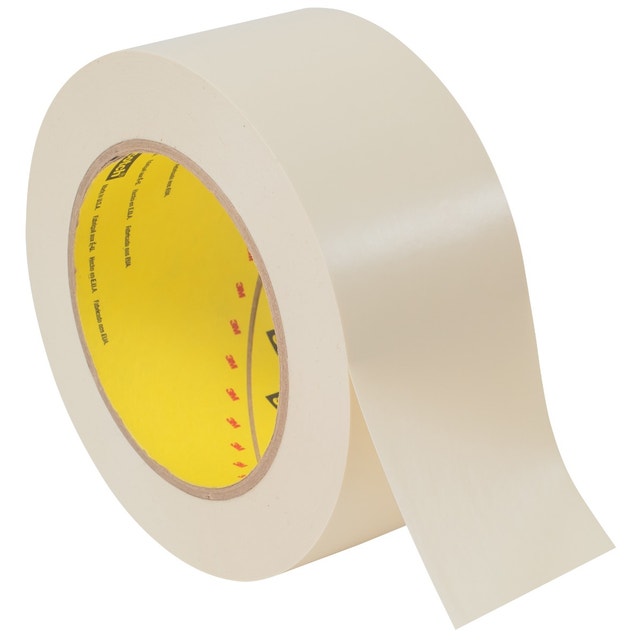

3M 470 Electroplating Tape

Sku:470
Rolls

Need Help Finding the Right Part?

Masking Product Finder - Get the right size!

Cross Reference Tool - Find equivalent CFS parts!

Product Details
chevron-up

3M™ Electroplating Tape 470 is designed to withstand intense and difficult conditions associated with electroplating and anodizing processes. Built on a flexible vinyl backing that conforms to irregular or curved surfaces, it is resistant to most common solvents and has excellent resistance to chemicals used in electroplating and anodizing.

Product Features

  • Operates at temperatures of up to 170°F/76°C
  • Rubber adhesive provides excellent holding strength on many surfaces
  • Tape removes cleanly from most surfaces
  • Abrasion, moisture and wear resistant to withstand rugged working conditions
  • Backing accepts marker ink and is printable using a thermal transfer process, making customization relatively easy when needed
  • Prolonged exposure to elevated temperatures (above 250°F/121°C) and hot caustics may cause weakening of the adhesive bond
  • Care should be taken to avoid ketones, chlorinated hydrocarbons, and esters, found in lacquer thinners, degreasers, paint strippers, etc., which may cause the backing to swell or curl

Construction

  • 7.1 Mil Total Thickness
  • Roll Length - 36 yards

Recommended Applications

  • Masking during electroplating operations, including both flat strip and overlapping masks
  • Masking during anodizing operations
  • Wrapping, patching, coated racks and masking irregular surfaces
  • Labeling
  • Milling and etching
  • Peening operations
  • Sealing containers from water intrusion

Specifications

  • Tensile Strength (lb/in) - 20
  • Elongation (%) - 180
  • Steel Adhesion (oz/in) - 37
  • Can be qualified to meet Federal Specification HH-T-0025 (GSA-FSS)Amendment 2
