3M 851 Green Circuit Board Tape

Starting at $5.5000
SKU
851
Based on the above selections this item has the following specifications:
Display Attributes
Pieces

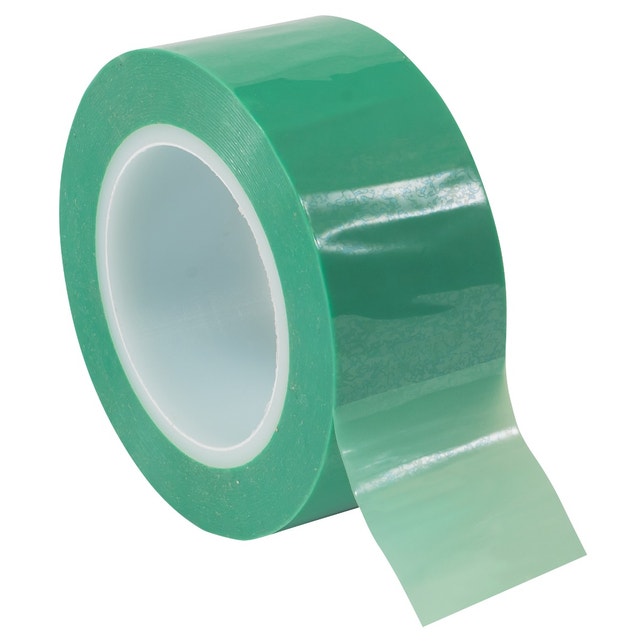

3M™Circuit Plating Tape 851 is a green polyester film tape with a thick adhesive of blended silicone and rubber. This tape is specifically designed for printed circuit board masking during electroplating, solder stripping and precious metal plating of fingers.

Product Features

  • Temperature - up to 170°F /76°C
  • Polyester backing reduces stretch and recovery of tape associated with uneven stop-off line
  • Thick adhesive coating reduces undercutting because adhesive blocks out solutions between fingers
  • Specially designed adhesive that generally performs better when no ovens are used to heat tape and boards
  • Tape must be firmly pressed down by equipment with rubber-covered rollers or a rubber-covered platen press. Hand rolling usually does not provide enough pressure. A vivid outline of the circuit leads usually indicates adequate pressure was used

Construction

  • 3.6 Mil Total Thickness
  • Roll Length - 72 yards

Specifications

  • Tensile Strength (lb/in) - 27
  • Elongation (%) - 124
  • Steel Adhesion (oz/in) - 29
Specifications
Material Polyester
Temperature Range 0 - 170 F
