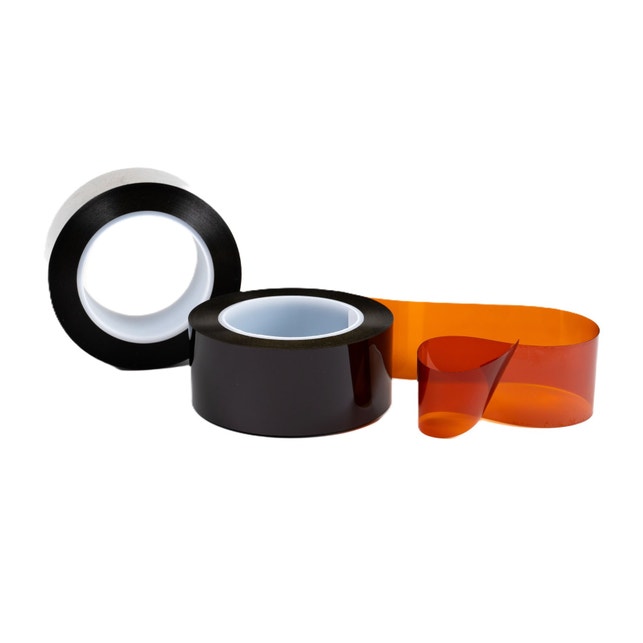

5 Mil Polyimide Tape

This polyimide tape is manufactured from commercial, heavy grade Polyimide film with a special silicone adhesive. Outstanding thermal resistance and excellent insulating properties, this tape is used where toughness, puncture resistance and flame retardance are important. For protection of gold fingers during wave soldering, it can also be used as a ground barrier and phase insulation in high performance coils, as an outer wrap on small bobbin wound coils and on form wound coils for traction motors.

Product Features

• Temperature Rating: 500° F / 260° C
• Meets Class H Requirements, flame retardant
• Highest tear resistance and dielectric strength of all Polyimide tapes
• Use for heavy duty, very high temperature masking
• Removes cleanly with no residue
• Used in Wave Soldering, Hot Air Leveling, and Circuit Board Insulation
• Custom sizes available for same day shipping
• Standard die cut sizes in stock or can be made to your specifications

Construction

• 5 Mil Polyimide Carrier
• 1.5 Mil Silicone Adhesive
• 6.5 Mil Total Thickness
• Roll length - 36 yards

Specifications

• Tensile Strength (lb/in) - 98
• Elongation (%) - 50
• Steel Adhesion (oz/in) - 25
• Dielectric Strength - 18.0

Recommended Applications

• Very high temperature masking during powder coating
• Wrap switches, sensors and coil heaters in seats for auto industry
• Insulate aircraft wings for aerospace applications
• Transformer & capacitor insulation

Polyimide is also known by the trade name Kapton™. If you require the trademarked brand, please inquire with your CFS representaive on pricing.
