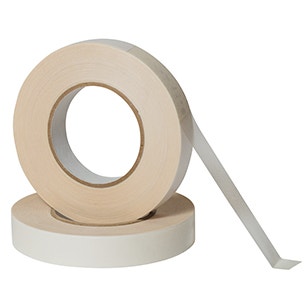

General Purpose Double Sided Polyester Tape

Sku:D4003
Rolls

Need Help Finding the Right Part?

Masking Product Finder - Get the right size!

Cross Reference Tool - Find equivalent CFS parts!

Product Details

Our D4003 is a PET double sided tape with an acrylic solvent-based pressure sensitive adhesive which offers 2 different adhesion levels; the open side is coated with higher adhesion providing quick bonding results. Ideal for foam lamination and a wide variety of substrates where high adhesion level is required.

Product Features

  • Operates at temperatures to 212°F/120°C
  • An excellent general purpose, economical double sided tape
  • Works best on high and medium surface energy materials

Construction

  • 3.0 Mil Total Thickness (excludes liner)
  • Roll Length - 60 yards
  • 76# White Bleached Kraft Paper

Recommended Applications

  • Splicing of plastic films, paper, cloth, etc
  • Temporary fastening of components before sewing
  • Porous foam lamination application, gasketing and sealing

Specifications

  • Steel Adhesion (oz/in) - 64/50
  • Tack (J. Dow No) - 16/12
Material Specifications
