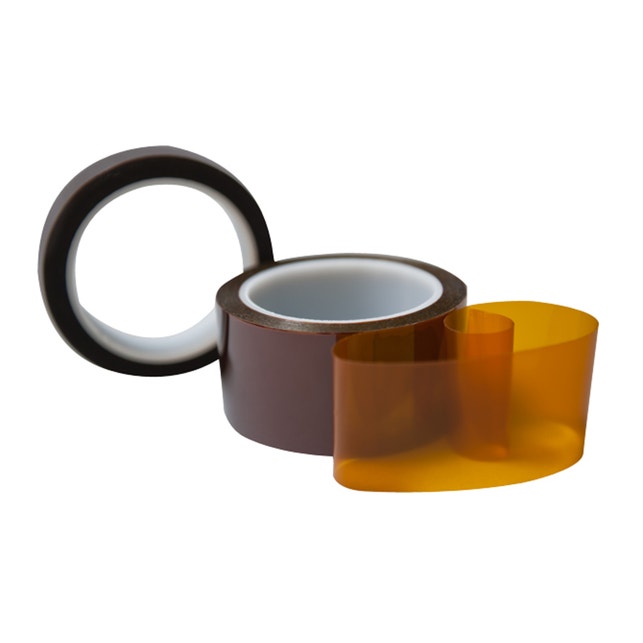

2 Mil Polyimide Tape w/Liner

Sku:KPT2L
Rolls

Need Help Finding the Right Part?

Masking Product Finder - Get the right size!

Cross Reference Tool - Find equivalent CFS parts!

Product Details

Polyimide tapes are used in printed circuit board (PCB) production, automotive and aerospace industries. This product maintains excellent physical, mechanical an electrical properties over a wide range of temperatures - continuous up to 500° F for one hour and short exposures over 700° F.  Manufacturerd from a commercial grade polyimide film, leaves no residue when removed. 0 - 500° F.

Product Features

  • Temperature Rating: 500° F / 260° C
  • Meets Class H requirements, flame retardant
  • Excellent dielectric strength and chemical resistance
  • Conformable to even surfaces and irregular shapes
  • Used in powder coating, e-coating, wave soldering, hot air leveling, and circuit board insulation
  • Custom widths available for same day shipment

Construction

  • 2.0 Mil Polyimide carrier
  • 1.6 Mil Silicone adhesive
  • 3.6 Mil Total thickness
  • Roll Length - 36 yards

Specifications

  • Tensile Strength (lb/in) - 44
  • Elongation (%) - 100
  • Steel Adhesion (oz/in) - 21
  • Dielectric Strength - 7.0
Material Specifications
