By Henry Asik, Vice President
Masking is the process of protecting specific areas of a part during any coating process. It may also be used to guard the part from contamination, damage, or moisture during the assembly and shipping process. This can be done with standard masking products or those that are customized for the application, common for products in the medical, health & beauty, pharma, electronics, and lighting industries.
Standard types of masking products include caps, plugs and kiss cut or die cut tape. Conversely, a custom mask may be created to suit the unique characteristics and dimensions of a product. This type of curated approach is a practical route for very specific items (such as wound care products, films, surgical drapes, skin patches or electrodes) and is especially useful in cases where the unit is ordered repeatedly over time.
Controlled Production
Numerous medical and related applications often require a dedicated and verified clean space to guard against moisture and air particles, which can be detrimental to the end-product. For example, if adhesives and flexible materials are exposed to airborne particles or moisture, this can reduce the strength of the adhesive and may ruin the effectiveness of products applied directly to the skin. A clean room helps to safeguard the process by controlling air pressure, dust, humidity and even temperature.
ISO 7 certification, also known as Class 10,000, states the maximum particle count must not exceed 352,000 air particles (0.50 microns in size) per cubic meter. To put this in perspective, ordinary room air contains at least 35 million particles per cubic meter, making clean room manufacturing over 100 times cleaner.

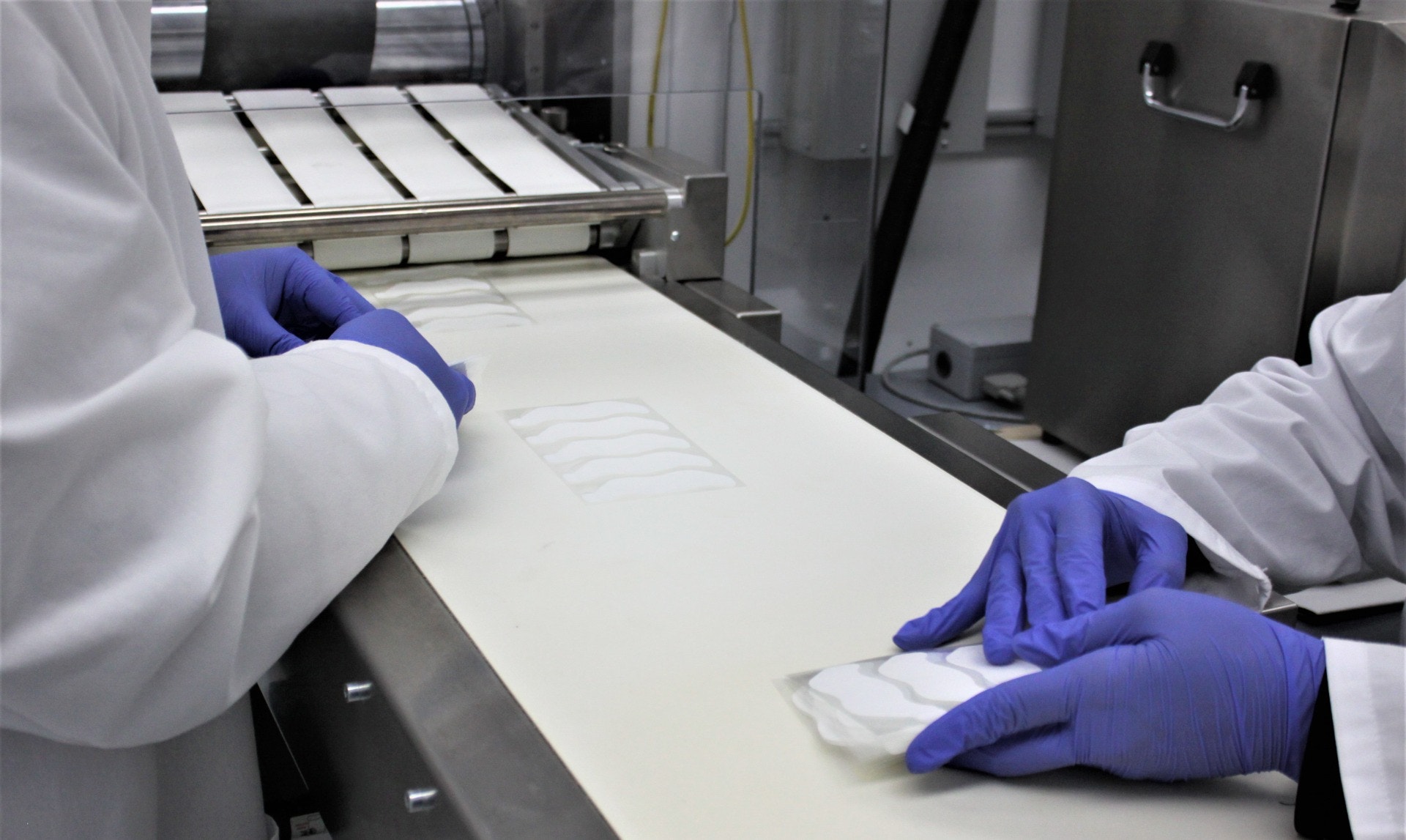

At CFS, a cleanroom is in place for projects that must be produced in a highly controlled environment. This dedicated, temperature-controlled space is equipped with an industrial dehumidifier to remove moisture and a separator filter dryer (SFD), which separates dirt and air particles, filters the air, and removes any moisture, producing high-quality, hospital-grade air that is needed for not only medical but also numerous other applications.
Clean Cuts

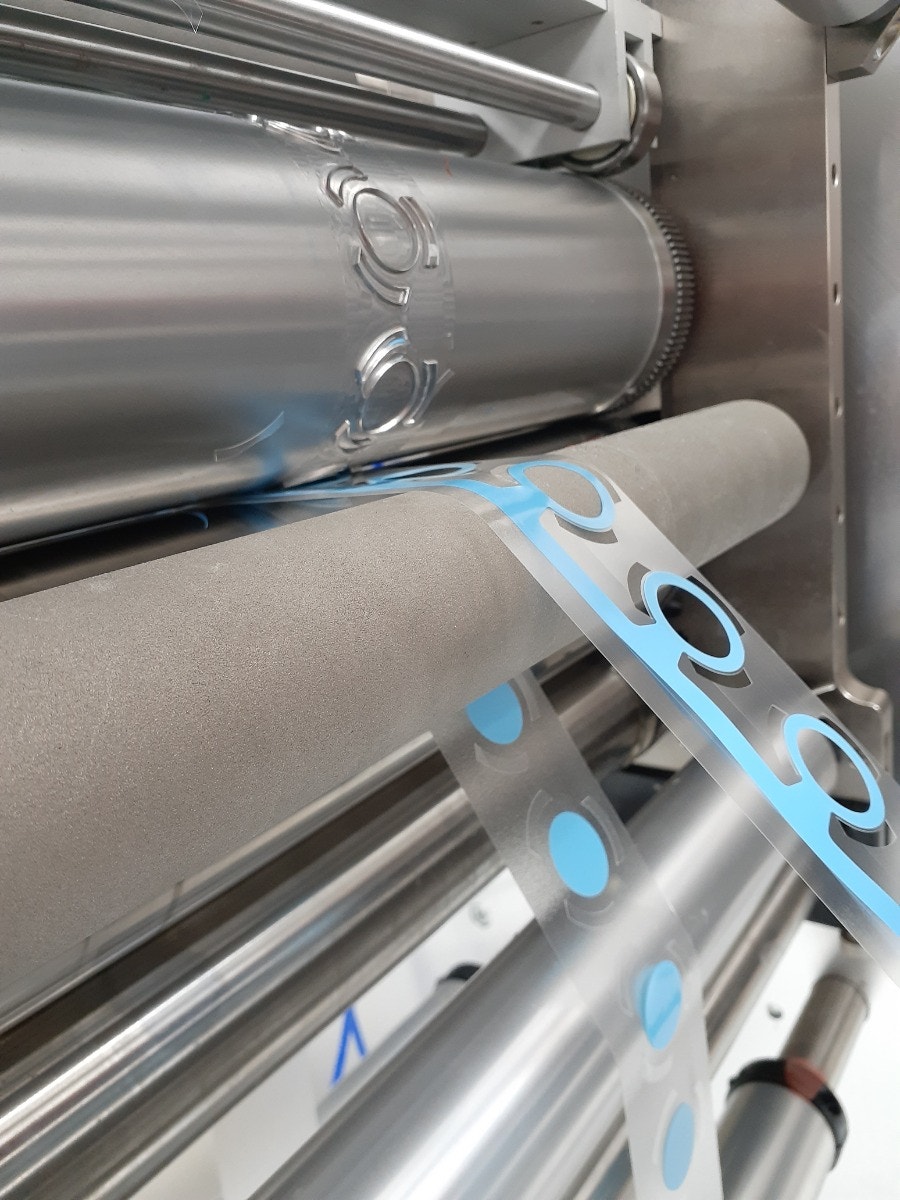

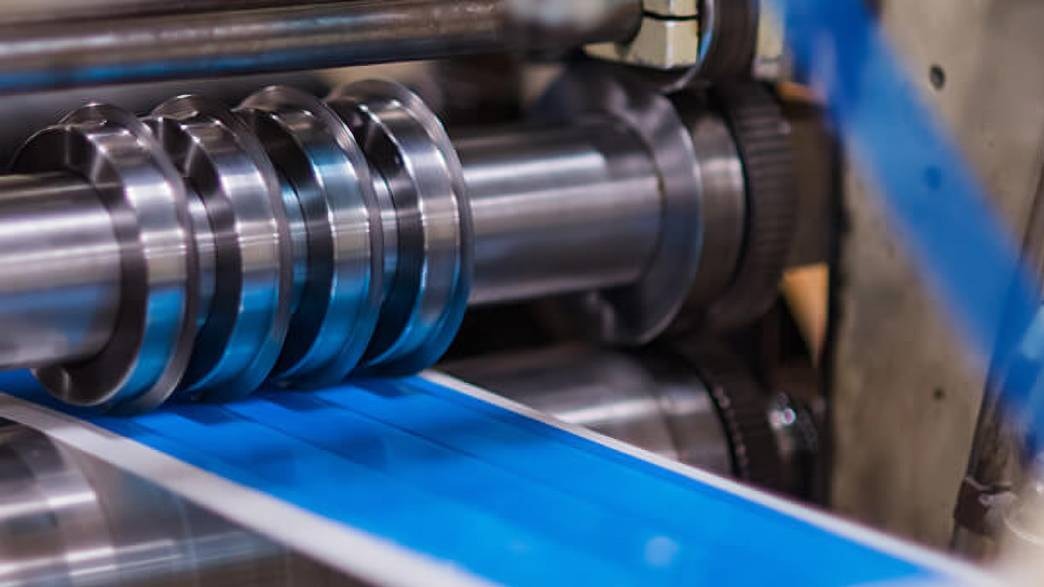

A clean room is ideal for converting, die cutting, laminating, slitting, packaging, and assembly of medical-grade products. Multi-layer laminations often requested by medical customers, as well as zoned adhesive and island placement are all possible with the technology in a clean room.
“The machine technology we use in the clean room, the Delta ModTech® Crusader, allows us to offer not only printing but also die cutting for a range of customers in the medical, electronics, and pharmaceutical sectors,” states Henry Asik, Vice President, Custom Fabricating & Supplies.
Some of the materials used for the medical industry include microporous hydrophobic PFTE and PES membranes, medical-grade foams, tapes and silicone rubber, polyimide tape die-cuts and woven and non-woven biocompatible pressure-sensitive adhesives.
For all applications, the product development process starts with a discussion with the customer about the primary goals of the project, followed by review of their CAD files and associated specifications. An internal CAD file is created to correctly model the part and call out all relevant details (tolerances, dimensional information, material type, part number). A prototype of the custom mask is also normally produced for approval and to ensure the part fits and performs as expected before it goes into full-scale production.
Medical Industry and Beyond
Cleanrooms are necessary for many types of industries, and specifically where small particles can affect the manufacturing and quality of the product or assembly. Clean room die cutting can be required for biotech, electronics, medical device, pharmaceutical, and semiconductor applications where high levels of cleanliness and sterility are required.
As a 3M Preferred Converter, CFS has the expertise needed to work with technical materials in the medical and related fields. An ISO 9001:2015 certification ensures that products and process meet the standards expected by the market and meet all quality and conformance metrics. For more information about this and other services available from Custom Fabricating & Supplies, please contact us.
